Name | Membrane level indicator |
---|---|
Type | PD-II-B3 – ref: 2205-A-002 PD-AII-B1 – ref: 2205-A-006 PD-AII-B5 – ref: 2205-A-004 |
Certifications: | |
B1 Dust | ATEX II 1/2D Ex ta/tb IIIC T83° C |
B3 Dust | ATEX II 1/3D Ex ta/tc IIIC T63° C |
B5 Gas+Dust | ATEX II 2G Ex ib IIC T6 II 1/2D Ex ta/tb IIIC T83° C |
Density of the product | 0,3 t/m3 – 2,5 t/m3 |
Ambient pressure | Atmospherical |
Maximum pressure | +1 bar |
Cable entry | M20x1,5 |
Maximum voltage | 250 V AC |
Contact function | 1 NO + 1 NC |
Capacity of the contact: | |
PD (B1 and B3) | 15 A / 250 V AC (for resistive loads) For inductive or capacitive loads reduce at 50% |
PD (B5) | Uo < 30 V DC; Ii < 100 mA |
Ambient temperature: | |
PD | -20° C – +60° C |
PD (B1 and B5) | -25° C – +80° C |
Protection | IP65 according DIN EN60529 |
PD: IP65 PD (B1 and B5): IP66 | |
Weight | PD: 0,49 Kg PD (B1 and B5): 1,00 Kg |
Sensitivity | 150 – 2.000 g adjustable (Depending of the model. Consult your application to our Technical Department) |
Materials: | |
Housing | PD (B3): Glass reinforced Polyester PD (B1 and B5): Aluminum |
Membrane | Stainless Steel 1.4301 |
Mounting ring and screws | Stainless Steel 1.4301 |
Cable gland | PD (B3): Polyamide PD (B1 and B5): Niquel-plated Brass |
- Productos
- ATEX controllers
- PD ATEX
Intended use

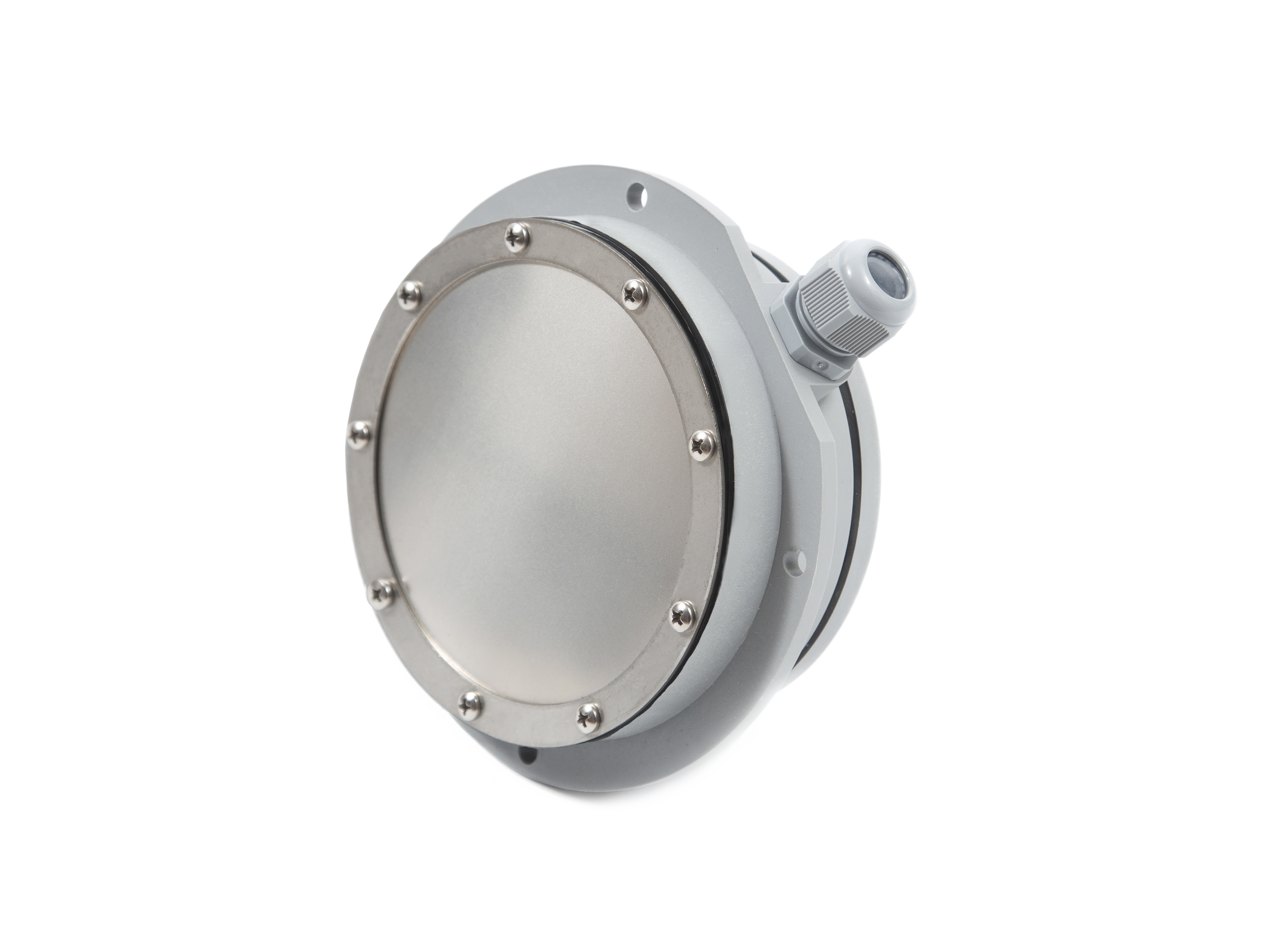

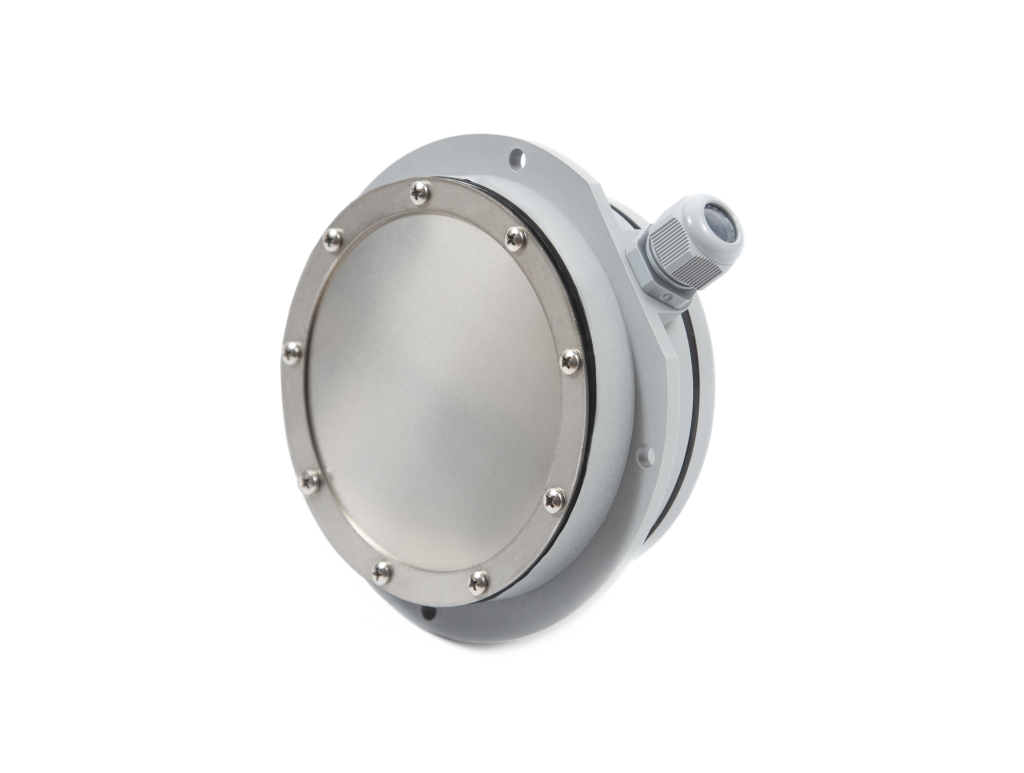

Membrane level indicator to be used to control normally the medium or minimum level of bulk solids in silos or vessels. The models are certificated for use in potentially explosive Dust and Gas atmospheres as well as in hybride mixtures (Dust + Gas) hazardous areas.
These controllers consist of a switch actuated by a membrane and it is recommended for dusty and powdery, granulated and grainy bulk goods like dust, flour, grain, sand, plastic, etc. with an easy flow and a bulk density from 0.3 to 2.5 t/m3.
Function
The membrane must to be exposed to the material.
The movement of the switch is the result of the pressure exerted by the incoming bulk material against the membrane which forces the membrane to move backwards, reversing the position of the switch and the signal is used for example to control the transport system in the silo.
The models have a regulation system by a spring that allows the adjusment of the sensitivity. Tightening the regulation nut to reduce the sensitivity and increase the strain of the material to activate the microswitch. Clockwise insensitive.
The models are adjusted at their maximum sensitivity. It is necessary to ensure the proper pressure to the membrane that returns the membrane when there is no product covering it.
Mechanical connection
Drill holes in the silo or vessel and mount the indicator using screws, rods, fasteners or nuts M6 making sure of the easy flow of the material and ensure that the product leaves the membrane without product on it.
