Pendulum level indicators

Intended use

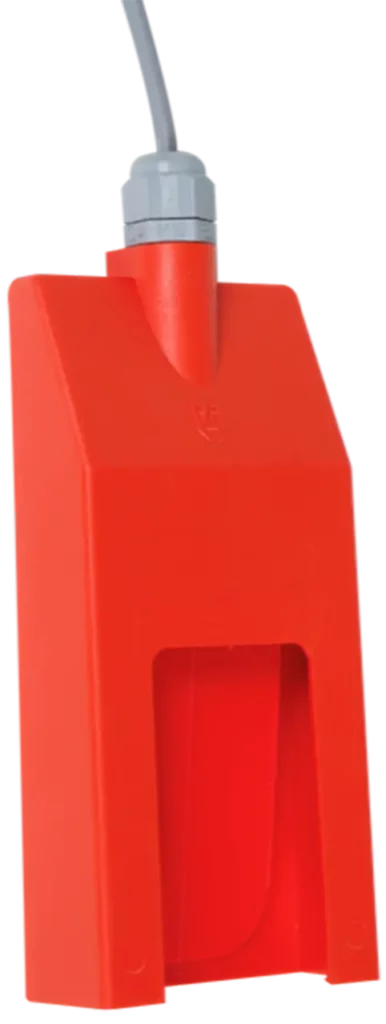

Displacement simple level indicator with protection box, cable entry M16 and with cable 3x0.5 mm2 of 450 mm length.

The level indicator observes the level as a limit switch in hoppers or little containers and tipically for feeding. It can be used as a full and empty indicator for non sticky and easy flow bulk solids at atmospherical pressure.

Function

The blade must to be exposed to the material.

The movement of the switch is the result of the pressure exerted by the incoming bulk material against the blade which forces the membrane to move backwards, reversing the position of the switch and the signal is used for example to control the transport system in the silo.

Mechanical connection

The mounting of the device is fixing the controller to the wall using screws. The standar mounting for the models ET is fixing the device using the bracket.

Dimensions

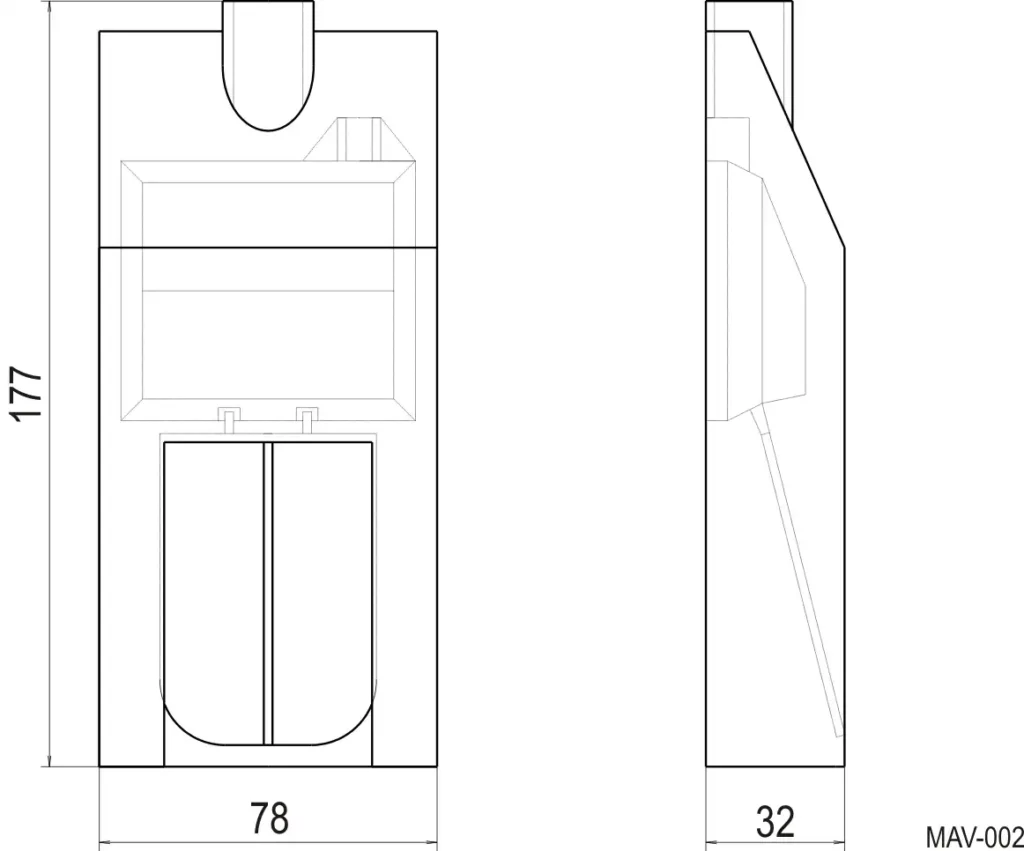

Approximate measures given in mm.

Technical data


Name	Displacement blade level indicator
Type	MAV E ref: 2330-1
Maximum pressure	250 V AC
Contact function	1 NO + 1 NC
Capacity of the contact	2 A / 250 V AC (for resistive loads) For inductive or capacitive loads
Ambient temperature	-10º C – +60º C
Protection	IP40 according DIN EN60529
Weight	0,15 Kg
Materials:
Housing	Polyamide
Protection box	ABS
